CD Series Wire Rope hoist Hoist

  • CD Series Wire Rope hoist Hoist

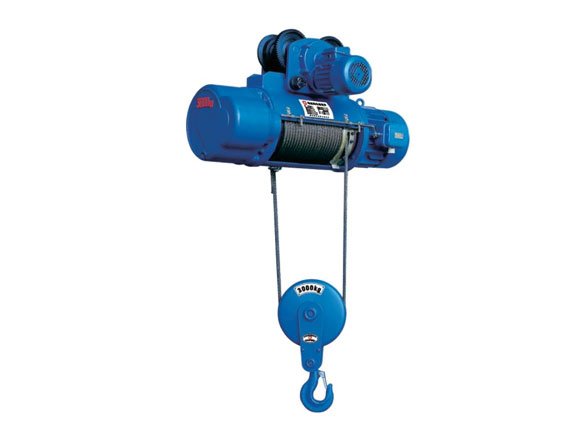

CD Series Wire Rope hoist Hoist

This wire rope hoist comes with a lot of technicalities which include a motor, gearbox, load hook, limit switch, low voltage and rope guide. All these components together work in co-ordination making this rope hoist a classic choice for your industry or warehouse.

We will also detail you on its working and handling which is quite simple and easy. This rope hoist will really benefit your industry in numerous ways.

INQUIRY NOW
  • Detail Specification
  • Technical Parameters (Size Specification)
  • Taper type rotor motor with braking, it hs big tourque.
  • Hoist gearbox has specially treated gears for high wear resistance, each geared shaft assembly is supported on ball or roller bearings.
  • Power to Pendant control reduced to 24V,36V,or 48V low voltage for safer operation.
  • It is in two halves and encircles the drum completely to ensure safety.
  • Hot forget high tensile steel, rigid and durable, fitting with safety latch to assure safe lifting.
  • Up/Down Limit switch fitted as both top and botton ends, shuts off power automatically to prevent load chain from running out.
Model CD1  MD1
Lifting Capacity(t) 0.5ton 1ton 2ton 3ton 5ton 10ton 16ton
Lifting Height(m) 6 | 9 | 12 | 18 6 | 9 | 12 | 18 | 24 | 30 6 | 9 | 12 | 18 | 24 | 30 6 | 9 | 12 | 18 | 24 | 30 6 | 9 | 12 | 18 | 24 | 30 6 | 9 | 12 | 18 | 24 | 30 6 | 9 | 12 | 18 | 24
Lifting Speed (m/min) 8,0.8/8 8,0.8/8 8,0.8/8 8,0.8/8 8,0.8/8 7,0.7/7 3.5,0.35/3.5
RunningSpeed (m/min) 20 20 20 20 20 20 20
Wire Rope
Nominal diameter(mm) 5.1 7.4 11 13 14 15 18
Structure 6X19+NF 6X37+NF 6X37+NF 6X37+NF 6X37+NF 6X37+NF 6X29+NF
Intension rate (Mpa) 1770 1670 1670 1670 1770 1870
I Beam Track Type(GB/T706-1998) 16 ˜ 28b 16 ˜ 28b 20a ˜ 45b 20a ˜ 45b 28a ˜ 63b 28 ˜ 63b 36a ˜ 63c
Loop Track Minimum Radius 1.5 1.5 | 2 | 3 | 4 2 | 2.5 | 3 | 4 2 | 2.5 | 3 | 4 2 | 2.5 | 3 | 4 2.5 | 3.5 | 4 | 6 | 4.5 | 9 3.5 | 4 | 6 | 7.5 | 9
Lifting Motor
Model ZD121-4 | ZDS10.2/0.8 ZD122-4 | ZDS10.2/1.5 ZD131-4 | ZDS10.4/3.0 ZD132-4 | ZDS10.5/4.5 ZD141-4 | ZDS10.8/7.5 ZD151-4 | ZDS11.5/13 ZD151-4 | ZDS11.5/13
Capacity (kw) 0.8 1.5 3 4.5 7.5 13 13
R.P.M 1380 1380 1380 1380 1440 1440 1440
Phase 3 3 3 3 3 3 3 3
Voltage (v) 380 380 380 380 380 380 380 380
Current (A) 2.4,72/2.4 4.3,0.72/4.3 7.6,1.25/7.6 11,1.4/11 18,2.4/18 30,4.3/30 30,4.3/30
Frequency (Hz) 50 50 50 50 50 50 50
Running Motor
Model ZDY111-4 ZDY111-4 ZDY111-4 ZDY112-4 ZDY21-4 ZDY21-4 ZDY21-4
Capacity(kw) 0.2 0.2 0.4 0.4 0.8 0.8X2 0.8X2
Speed (r/min) 1380 1380 1380 1380 1380 1380 1380
Phase 2 3 3 3 3 3 3
Voltage (v) 380 380 380 380 380 380 380
Current (A) 0.72 0.72 0.72 1.25 2.4 2.4X2 2.4X2
Frequency (Hz) 50 50 50 50 50 50 50
Joint Times 120 120 120 120 120 120 120
Classification Grade M3 M3 M3 M3 M3 M3 M3
Basic Dimenstion # 2%(mm)
H ˜560 | ˜650 ˜685 } ˜780 ˜850 | ˜950 ˜954 | ˜1057 ˜1212 | ˜1272 ˜1320 | - ˜1900 | -
L1 126 196 187 230 274 303 303
L2 228 / 225 269 / 266 279 314 / 343 380 / 377 429 / 820 429 / 820
L 628 | 714 | 772 | 916 | 925 | 711 | 769 | 913 772 | 867 | 965 | 1161 | 1357 | 1553 6 | 9 | 12 | 9 | 12 | 18 6 | 9 | 12 | 18 | 6 | 9 | 12 | 18 6 | 9 | 12 | 18 | 6 | 9 | 12 | 18 6 | 9 | 12 | 18 | 6 | 9 | 12 | 18 6 | 9 | 12 | 18 | 6 | 9 | 12 | 18 6 | 9 | 12 | 18 | 6 | 9 | 12 | 18
M 318 | 390 | 462 | 601 404 | 499 | 597 | 793 | 989 | 1185 412 | 512 |612 | 812 | 1012 | 1212 457 | 561 | 658 | 869 } 1075 | 1281 488 | 615 | 704 | 895 | 1105 | 1315 847 | 1029 | 1209 | 1571 | 1928 | 2290 1148 | 1329 | 1691 | 2053 | 2415
N 190 196 240 240 320 376 376
H 120 124 155 155 203 243 243
Ø 14.5 19 23 23 31 38 38
E 490 584 749 749 1017 1614 1614
F 355/508 368/205 368/529 368/529 480/690 312 312
