- Suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
- Manufactured from high quality carbon steel.
- Avoid snatch or shock loading.
- The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°. In lifting operations the clamps can be used in pairs or multiples.
- sales@mithoist.com
- +86-576-8245-3785
- English

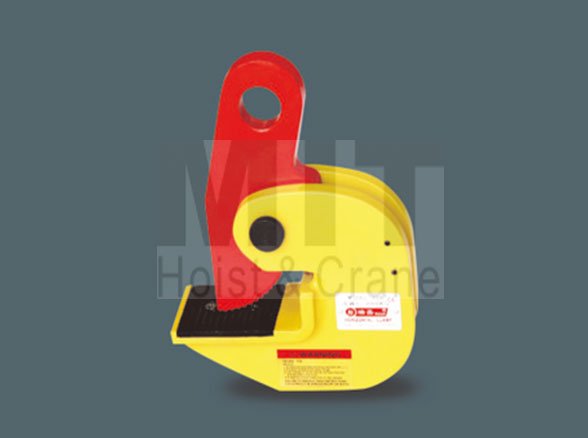

HLC-C Series Horizontal Plate Clamp
Suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
| Part No. | Will (T) | Jew Opening (mm) | Weight (kg) |
|---|---|---|---|
| HLC-C080 | 0.8 | 0-25 | 2.5 |
| HLC-C100 | 1.0 | 0-30 | 3.5 |
| HLC-C150 | 1.5 | 0-30 | 4 |
| HLC-C200 | 2.0 | 0-40 | 5 |
| HLC-C320 | 3.2 | 0-45 | 6 |
| HLC-C400 | 4.0 | 0-50 | 6.5 |
| HLC-C500 | 5.0 | 0-55 | 7.5 |
| HLC-C600 | 6.0 | 0-65 | 10.5 |
| HLC-C600 | 6.0 | 0-130 | 22 |
| HLC-C800 | 8.0 | 0-100 | 22 |
| HLC-C1000 | 10.0 | 0-125 | 33 |
| HLCC1600 | 16.0 | 50-150 | 50 |
| HLC-C3000 | 30.0 | 100-270 | 108 |
