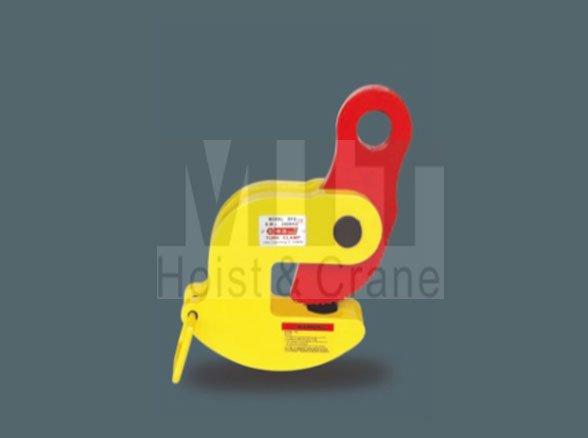

HLC-I Series Turn Clamp

  • Detail Specification
  • Technical Parameters
  • For lifting and turn steel plate
  • From a mechanics point of view, these clamps have ideal designs, which are compact, lightweight, and easy to use.

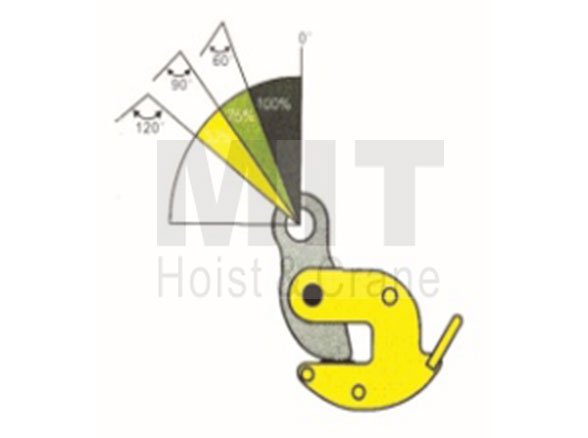

  • The working load limited is applied in one piece, during lifting single could be in use for horizontal lifting and transport.
Part No. Will (T) Jew Opening (mm) Weight (kg)
HLC-I150 1.5 0-20 5
HLC-I250 2.5 0-30 9
HLC-I500 5.0 0-40 20
HLC-I800 8.0 0-50 26
HLC-I1000 10.0 0-60 31
HLC-I1600 16.0 20-120 60
HLC-I2000 20.0 60-160 80
