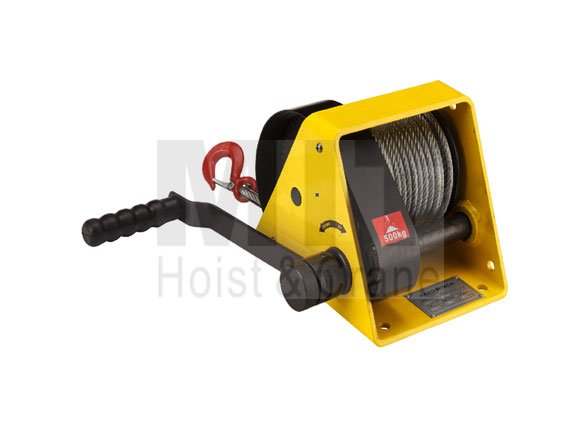

HW-A Series Hand Winch

  • Technical Parameters
Model HWA150 HWA300 HWA500 HWA1000 HWA2000
Safe Working Load(kg) 150 300 500 1000 2000
Steel Wire Rope (mm) 4 5 6.8 9 13
L (m) 22 40 25 25 30
Layer Number 6 6 4 4 3
Net Weight (kg) 8 16 17 38 60
Load (kg) 150 300 500 1000 2000
A (mm) 180 240 240 412 500
B (mm) 325 385 385 485 585
C (mm) 150 200 200 300 325
D (mm) 150 200 200 300 405
E (mm) 350 250 250 350 350
Φ (mm) 4x22 5x40 6.8x20 9x25 13x30
Transmission Ratio 2.842:1 6.67:1 7.75:1 23.75:1 43.7:1
