ER series Electric Chain Hoist 1Ton to 5Ton

  • Detail Specification
  • Technical Parameters (Single Speed)
  • Technical Parameters (Size Specification)
  • Current-driven electromagnetic brake produces strong braking power, securely holding a load.
  • As an emergency overload protectio to slip the force from the motor in such lifting an anchored object..
  • Simplified tructure - stops the hoist at both ends of the hook path as a double safety mechanism with Friction clutch.
  • Aluminum die-cast motor frame with external motor fan reduces rise in heating during frequent operation.
  • Helical gears reduces operating noise.
  • Tough body.
  • A specially designed electric board prevents motor from running at it reverse phased.
  • FEC Grade 80 case hardned alloy steel chain, endures harsh conditions such as rain, salt water and chemicals.
  • Hot forget high tensile steel, rigid and durable, 360° swvel, fitting with safety latch to assure safe lifting.
  • Protection class IP65. Fully water-proof and insulated, offers light weight and durability.
  • Power to Pendant control reduced to 24V,36V,or 48V low voltage for safer operation.
Model No. Capacity
(Ton)
Lifting Speed
(m/min)
Chain Falls Lifting Motor Power Supply Travelling Motor I-beam
Power
(KW)
Rotation Speed
(r/min)
Phase Voltage
(V)
Frequency
(Hz)
Power
(KW)
Rotation Speed
(r/min)
MHT01ER-01 1 7.2 1 1.5 1440 3 200V-690V 50/60 0.4 1440 80-160
MHT02ER-02 2 3.6 2 1.5 1440 3 200V-690V 50/60 0.4 1440 82-178
MHT03ER-01 3 5.4 1 3.0 1440 3 200V-690V 50/60 0.4 1440 100-180
MHT05ER-01 5 2.7 2 3.0 1440 3 200V-690V 50/60 0.75 1440 110-180

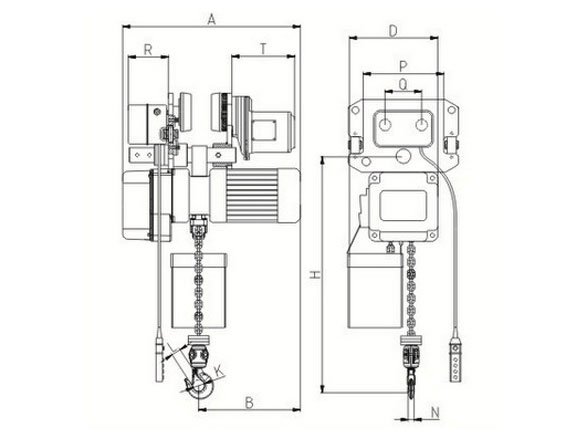

Model No. Capacity
(Ton)
Unit(mm)
H A B D E K L N Chain
MHT01ER-01 1 400 595 320 300 - Φ40 31 24 Φ8.0
MHT02ER-02 2 600 595 320 300 245 Φ49 35 30 Φ8.0
MHT03ER-01 3 650 785 395 465 295 Φ59 42 35 Φ11.2
MHT05ER-02 5 880 785 395 465 360 Φ60 45 43 Φ11.2
