MCS-S Series Digital Crane Scale

  • Detail Specification
  • Technical Parameters
  • Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum.
  • Multi-weighing units: Kg, Lb, Nowton are selectable, kg are default unit.
  • Multi-function operation: Tare, Zero, Auto zero tracking, total, hold peak hold, Overload warning and record, operated through infrared remote controller.
  • User-friendly design: Large red 5 digit LED display (digit height 30mm), Battery operated with low battery indication, Automatic turn off, power-saving function.
  • Gravity regulation: The acceleration of gravity can be regulated through remote controller according to different places value.
  • Multi options: RS-232-continuous or on demand data output, user-selectable.

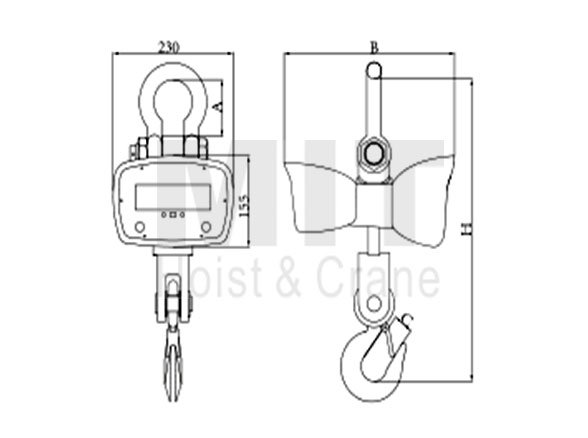

Model Cap.(kg) Resolution (kg) A (mm) B (mm) C (mm) H (mm) N.W (kg) G.W. (kg)
MCS-S1 1000 0.5 67 350 33 450 13.5 16
MCS-S2 2000 1 67 350 33 450 13.5 16
MCS-S3 3000 1 95 350 40 510 17 19
MCS-S5 5000 2 113 365 50 625 26 30
MCS-S10 10000 5 122 365 60 760 40 45
MCS-S15 15000 5 144 365 70 835 55 80
MCS-S20 20000 10 166 365 85 900 68 85
